EGE Hose

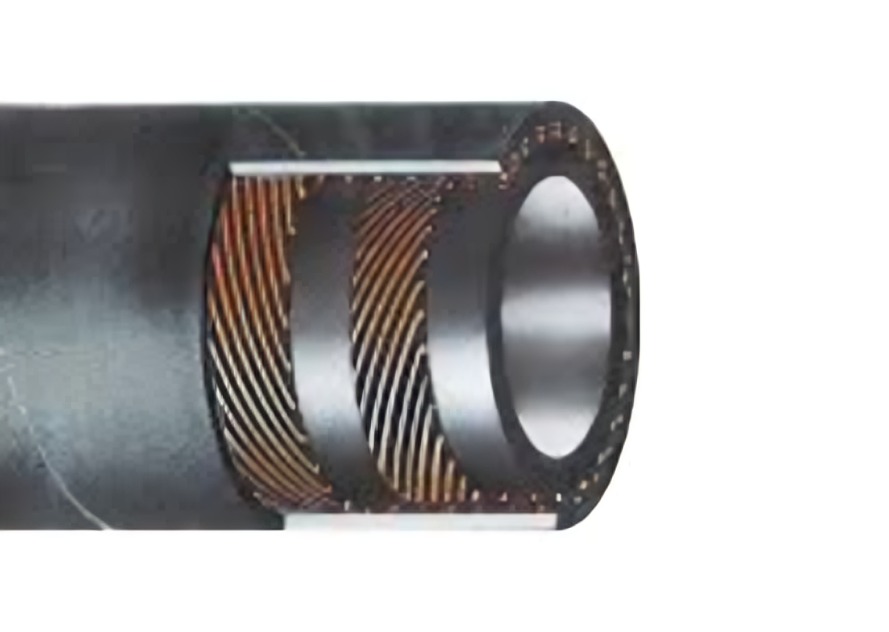

The EGE hose is designed for the delivery and aspiration of a wide range of chemical products, such as acids, alkalis, and solvents, in non-corrosive environments, thanks to its excellent polypropylene (PP) behavior. It is ideal for use in loading and unloading operations for tank trucks, wagons, plant, and marine applications. The hose features an inner wire spiral made of PP-coated steel, an outer wire spiral of galvanized steel, and an inner lining of polypropylene. The cover is made of PVC-coated polyester cloth, ensuring durability and flexibility.
Features
- Complies with standard EN13765: 2010
- Temperature range: -30˚C to +100˚C
- Safety factor: 5:1
- Vacuum: 0.9 bar
- Maximum coil length: 30 meters
| EGE | Standard Duty | Heavy duty | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ID | 1” | 1 ½” | 2” | 2 ½” | 3” | 4” | 6” | 8” | 10” | |
| Bend radius | 68 | 105 | 190 | 225 | 290 | 320 | 497 | 740 | 920 | |
| Weight kg/m | 1.16 | 1.8 | 2.06 | 2.7 | 3.5 | 5.44 | 11.9 | 21.5 | 25 | |
| Working Pr. CODE 14 | 14 bar/ 203 Psig | do | do | do | do | do | do | do | do | do |
| Working Pr. CODE 10 | 10 bar/ 145 Psig | do | do | do |
