GGE Construction
Inner Wire Spiral: Galvanized Steel (G)
Outer Wire Spiral: Galvanized Steel (G)
Inner Lining: Polypropylene (E)
Cover: PVC
Description:

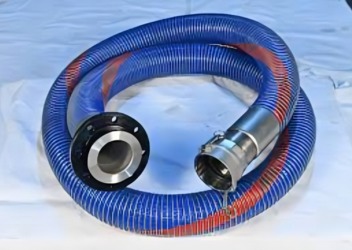

VK Engineering offers a hose designed for the delivery and/or suction of fuels, oils, and lubricants. This hose is ideal for use in cistern trucks, railcars, or fixed storage units.
Features:
- Complies with EN 13765: 2010 standards
- Built for durability and reliable performance
Specifications:
- Temperature Range: -30˚C to +100˚C
- Vacuum: 0.9 bar
- Maximum Coil Length: Up to 30 meters
| GGE | Standard Duty | 1” | 1 ½” | 2” | 2 ½” | 3” | 4” | 6” | 8” | 10” |
|---|---|---|---|---|---|---|---|---|---|---|
| ID | 1” | 1 ½” | 2” | 2 ½” | 3” | 4” | 6” | 8” | 10” | |
| Bend Radius | 105 | 190 | 225 | 290 | 320 | 497 | 740 | 920 | ||
| Weight kg/m | 1.8 | 2.06 | 2.7 | 3.5 | 5.44 | 11.9 | 21.5 | 25 | ||
| Working Pr. CODE 14 | 14 bar/203 Psig | do | do | do | do | do | do | do | do | do |
| Working Pr. CODE 10 | 10 bar/145 Psig | do | do | do |
