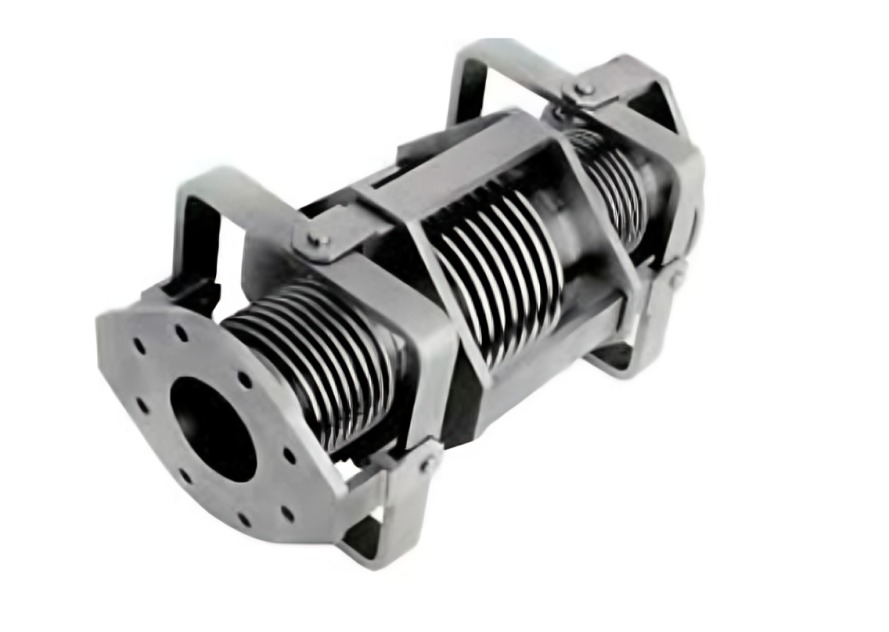

Gimbal Expansion Joint

A gimbal expansion joint is a highly versatile and robust solution for managing angular movement in piping systems. Unlike hinged expansion joints that operate in a single plane, a gimbal expansion joint allows angular rotation in multiple planes. This capability is made possible by the inclusion of two pairs of hinges connected to a common floating gimbal ring. The design ensures stability, precise movement, and the ability to absorb forces exerted by thermal expansion, pressure fluctuations, and external conditions.

The gimbal ring and its associated hinge pins are engineered to withstand significant internal pressure thrusts and any extraneous forces acting on the joint. This advanced design ensures that the stresses from such forces are absorbed and not transferred to other sections of the piping system.

Features:

• Multi-Plane Angular Movement: Allows rotation in any plane, providing unmatched flexibility.
• Floating Gimbal Ring: Central component that ensures balanced and efficient movement.
• Robust Hinges and Pins: Withstand internal and external forces, ensuring durability and reliability.
• Pressure Restraint: Effectively absorbs and restrains thrust caused by internal pressure.
• Corrosion-Resistant Materials: Designed to endure harsh environmental conditions and high-pressure operations.

Applications:

Gimbal expansion joints are ideal for systems requiring angular movement in multiple planes. Common applications include:

• Steam and Thermal Piping Systems: Accommodating thermal expansion and contraction.
• Industrial Exhaust Systems: Providing flexibility for exhaust lines in industrial and power generation facilities.
• Marine Applications: Absorbing multi-directional movements in ship piping systems.
• High-Temperature Pipelines: Managing movements in systems exposed to extreme temperatures.

Advantages:

• Superior Flexibility: Handles angular motion in any direction, making it highly adaptable.
• Enhanced Durability: Designed to operate under high-stress conditions without compromising performance.
• Thrust Management: Prevents internal pressure forces from affecting the pipeline structure.
• Reduced Stress: Minimizes mechanical stress on pipes and connected equipment.
• Optimized Safety: Ensures stability and reliability even in demanding environments.

Installation Guidelines:

For optimal performance, gimbal expansion joints must be carefully aligned and securely anchored. Their design allows them to function as standalone components or in combination with other expansion joints, such as hinged or universal joints, to create complex systems capable of managing all types of movements. Proper installation ensures that the gimbal joint effectively absorbs and distributes forces, protecting the integrity of the piping system.

Benefits in Piping Systems:

• Versatility: Supports angular movement in all directions, accommodating complex motion patterns.
• Load Reduction: Reduces the load on adjacent piping and support structures.
• Extended System Life: Minimizes wear and tear, resulting in lower maintenance costs and longer service life.
• Operational Efficiency: Enhances the efficiency and reliability of the piping system under variable conditions.

Gimbal expansion joints offer a reliable and efficient solution for managing angular movements in multi-plane systems. Their advanced design, robust construction, and ability to handle high pressures and temperatures make them a preferred choice in industries where flexibility and performance are critical.

---
