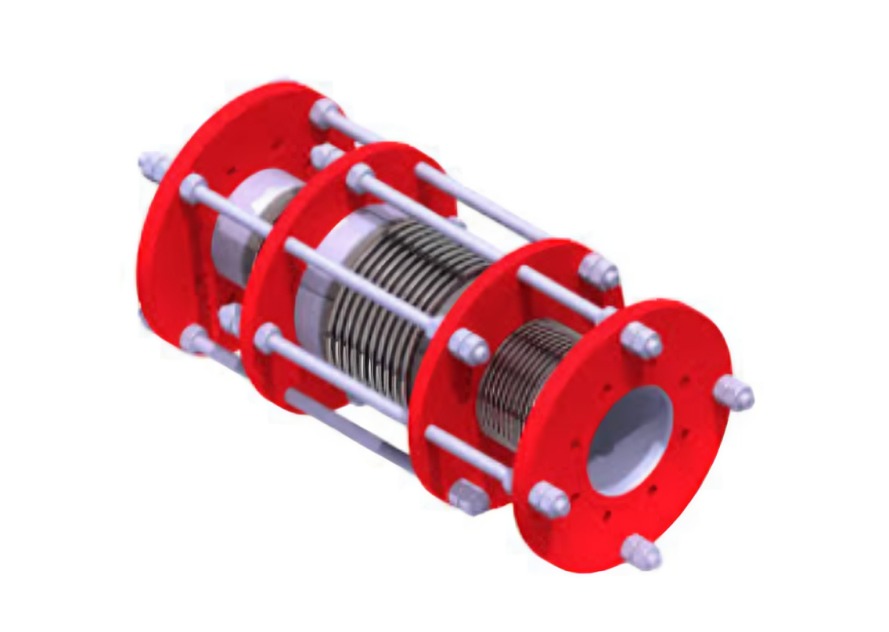

Pressure Balanced Expansion Joint
A pressure balanced expansion joint is a specialized type of joint designed to absorb axial movement, lateral deflection, or a combination of both, while effectively managing and neutralizing the pressure thrust generated within the piping system. This is achieved through the use of tie rods or other restraining devices that interconnect the flow bellows with an opposing bellows. The opposing bellows is similarly subjected to internal line pressure, creating a balanced force that eliminates the need for additional anchors to counteract the pressure thrust.
This type of expansion joint is particularly useful in scenarios where the piping system changes direction, such as at elbows or other configurations, where conventional anchoring methods may not be feasible or cost-effective. By balancing the forces internally, pressure balanced expansion joints reduce stress on surrounding structures, ensuring safe and efficient system operation.
Key Features:
- Thrust Neutralization: Balances internal pressure forces, reducing the need for external anchors.
- Multi-Movement Capability: Accommodates axial, lateral, and combined movements.
- Robust Design: Manufactured with high-quality materials to endure extreme pressures and temperatures.
- Enhanced Safety: Minimizes the risk of structural damage due to pressure-induced thrust forces.
- Flexibility: Available in configurations to suit various piping layouts, including straight runs and directional changes.
Types of Pressure Balanced Expansion Joints:
- In-Line Pressure Balanced Expansion Joint: Designed for axial movement absorption in a straight pipeline.
- Elbow Pressure Balanced Expansion Joint: Installed at pipe bends to absorb axial and lateral movements.
- Universal Pressure Balanced Expansion Joint: Contains two flow bellows separated by a common connector, allowing for greater flexibility in axial and lateral motion.
Applications:
Pressure balanced expansion joints are widely used in industries where managing thermal expansion, vibration, and system flexibility is critical. Common applications include:
- Power Plants: Steam pipelines and turbine exhaust systems.
- Petrochemical and Refinery Industries: Piping systems carrying high-pressure fluids.
- HVAC Systems: High-capacity heating and cooling pipelines.
- Marine and Shipbuilding: For pipelines operating under variable pressure and temperature conditions.
- Industrial Processing Plants: High-temperature and high-pressure fluid systems.
Advantages:
- Reduced Stress on Anchors and Supports: Internal balancing minimizes external load requirements.
- Extended Service Life: Protects the system from excessive wear and mechanical failure.
- Improved System Efficiency: Facilitates smooth thermal expansion and vibration absorption.
- Versatility in Design: Can be customized for a variety of piping system configurations and movement needs.
- Safety and Reliability: Ensures stable operation even in high-stress environments.
Installation Considerations:
- Alignment: Proper alignment during installation is critical for optimal performance.
- Support Structure: While external anchors may not be required, the surrounding structure should be robust enough to support the joint and connected piping.
- Movement Testing: Ensure that the joint can accommodate the specified movements without overextension.
- Periodic Inspection: Regular maintenance and inspection help extend the service life and ensure operational safety.
Operational Benefits:
Pressure balanced expansion joints provide a reliable solution for managing movements in complex piping systems. By neutralizing pressure thrust internally, they enhance the overall integrity and longevity of the system, reduce costs associated with anchor installation, and ensure efficient handling of thermal and mechanical stresses.
This makes pressure balanced expansion joints an indispensable component in modern industrial piping systems, particularly in scenarios where space constraints or high-pressure conditions demand innovative and robust solutions.
