Universal Expansion Joint

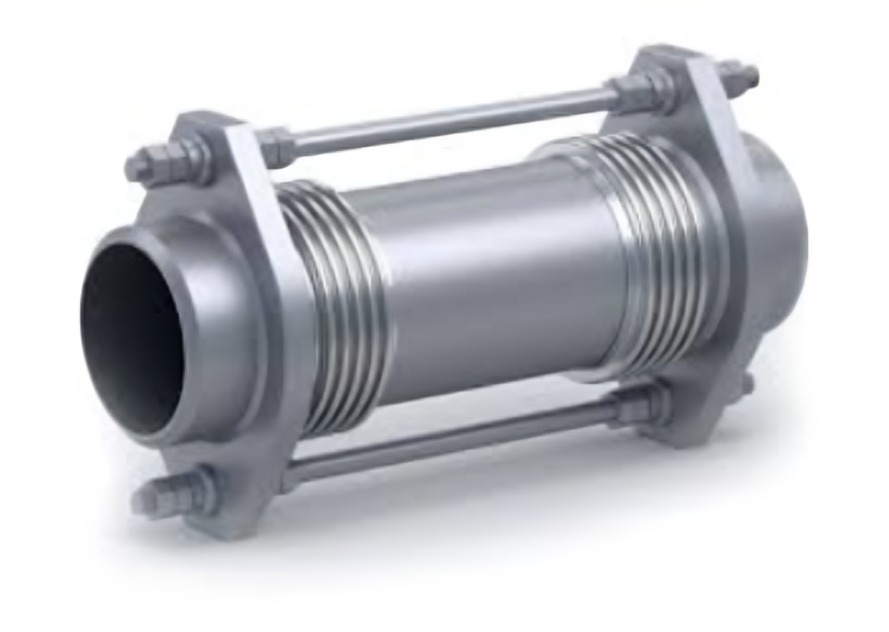

A Universal Expansion Joint is a versatile component designed to absorb any combination of the three primary movements in piping systems: axial movement, lateral deflections, and angular rotation. It features two bellows connected by a common central pipe or connector. This design enables the joint to manage complex movement patterns, offering flexibility and durability in various industrial applications.

Universal expansion joints are typically equipped with control rods. These rods play a crucial role in distributing the movements between the two bellows evenly and stabilizing the central connector. While this joint excels at accommodating combined movements, it is not the only type capable of handling them.

Features:

• Dual-Bellow Construction: Enhances flexibility by allowing independent movement in multiple directions.
• Central Connector: Ensures stability and facilitates the even distribution of stresses.
• Control Rods: Prevent excessive movements, distribute loads evenly, and provide additional stability.
• Material Versatility: Can be manufactured from various materials to withstand extreme temperatures, pressures, and corrosive environments.

Applications:

Universal Expansion Joints are suitable for:

• Power Plants: Handling thermal expansion in steam and turbine pipelines.
• Chemical Processing: Managing vibrations and movement in pipelines carrying corrosive substances.
• HVAC Systems: Allowing for thermal flexibility in heating, ventilation, and air conditioning systems.
• Petrochemical Industries: Absorbing multi-directional movements in high-pressure and high-temperature pipelines.

Advantages:

• Multi-Directional Absorption: Effectively handles axial, lateral, and angular movements simultaneously.
• Enhanced Stability: Control rods ensure a balanced distribution of forces, protecting the joint and connected components.
• Customizable Design: Can be tailored to meet specific operating conditions, including extreme pressure and temperature requirements.
• Durable and Reliable: Built with robust materials, ensuring long service life even in demanding environments.

Benefits in Piping Systems:

• Reduces stress and strain on pipelines and associated components.
• Minimizes the risk of failure due to thermal expansion or unexpected movements.
• Improves operational efficiency and reduces maintenance costs by extending the lifespan of piping systems.

Universal Expansion Joints provide a dependable solution for managing complex movement requirements, making them an essential component in modern industrial piping systems.

---
