Seismic Connectors

Seismic connectors are crucial components designed to protect vital installations, such as sprinkler piping systems, from the damaging effects of seismic movements, including earthquakes. These connectors provide essential flexibility to piping systems, absorbing seismic motion in all three directions, ensuring the structural integrity of the systems during seismic events.

Types of Seismic Connectors:

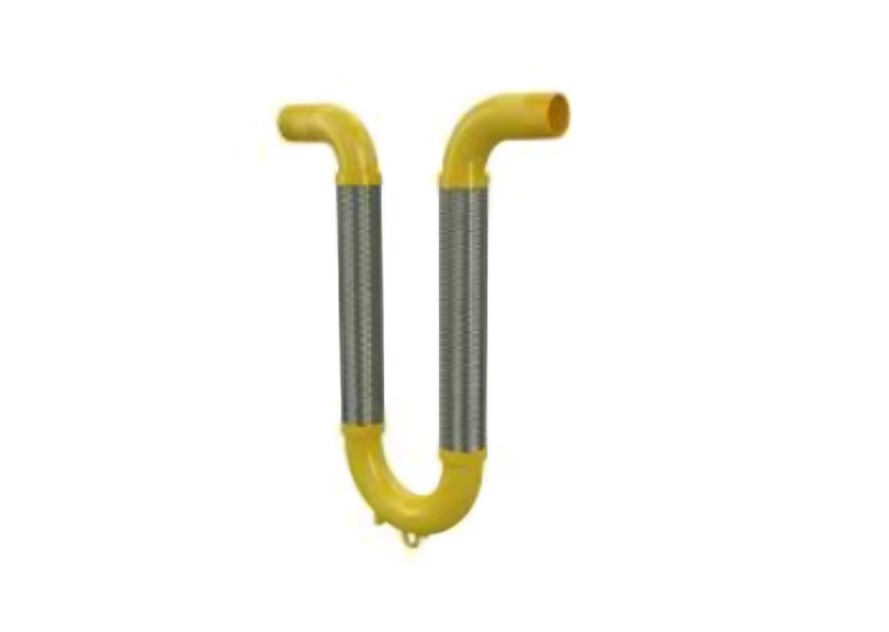

1. 60˚ Vee Connectors
2. U-Connectors

Both types of seismic connectors feature flexible elements that move smoothly in multiple directions—toward and away from each other, up and down, and transversely. The degree of movement is influenced by the length of the flexible element, providing customized flexibility to suit specific needs.

Advantages of Seismic Connectors:

1. Effective Seismic Protection:
   These connectors are specifically designed to mitigate the effects of seismic motion, absorbing vibrations and movements to protect piping systems from damage during earthquakes or other seismic events.

2. Cost-Effective Solution:
   Compared to traditional expansion joints, seismic connectors are more affordable to install. They require less space, fewer fixing points, and allow for more compact, nested installations. This results in significant savings in both installation and maintenance costs.

3. Reduced Load on Main Pipeline:
   Unlike conventional piping and expansion joints, seismic connectors impose minimal load on the main pipeline. Their ability to absorb seismic vibrations efficiently ensures reduced strain on the entire system, contributing to its longevity and reliability.

4. Space-Saving Design:
   Seismic connectors are designed to save space, making them an ideal choice for installations where space is limited or where multiple systems need to be connected in confined areas.

Applications:

Seismic connectors are used in a variety of industries and applications where seismic protection is crucial. These include:

• Sprinkler Piping Systems: Ensuring the stability and safety of fire suppression systems during seismic events.
• Industrial Installations: Protecting critical piping systems in manufacturing, power plants, and other essential infrastructure.
• Infrastructure Projects: Maintaining the integrity of piping systems in buildings, bridges, and other structures located in seismic zones.
